Hardware parameters

Appearance

Referring to the structure and ergonomic design of laptop, combined with sheet metal and CNC machining process, a large number of aluminum materials are adopted

LCD screen

14-inch high-definition capacitive touch screen

Resolution

1920*1080

Power

External adapter 110-220V , 12V 20A

Support

USB3.0  /HDMI/ VGA external monitor

WI-FI

Optional

Hard disk

60G SSD /Storage :standard 4TB, max 20TB

Motherboard

Industrial Motherboard ,  J1900 Dual-core 4 thread 1.9HZ

Standard memory

4G RAM

N.W

8kg

Operating temperature

-10° ~ 55°

Product Size

400mm*250mm*140mm

Voice broadcast

Support

Battery

(Optional)

Slot

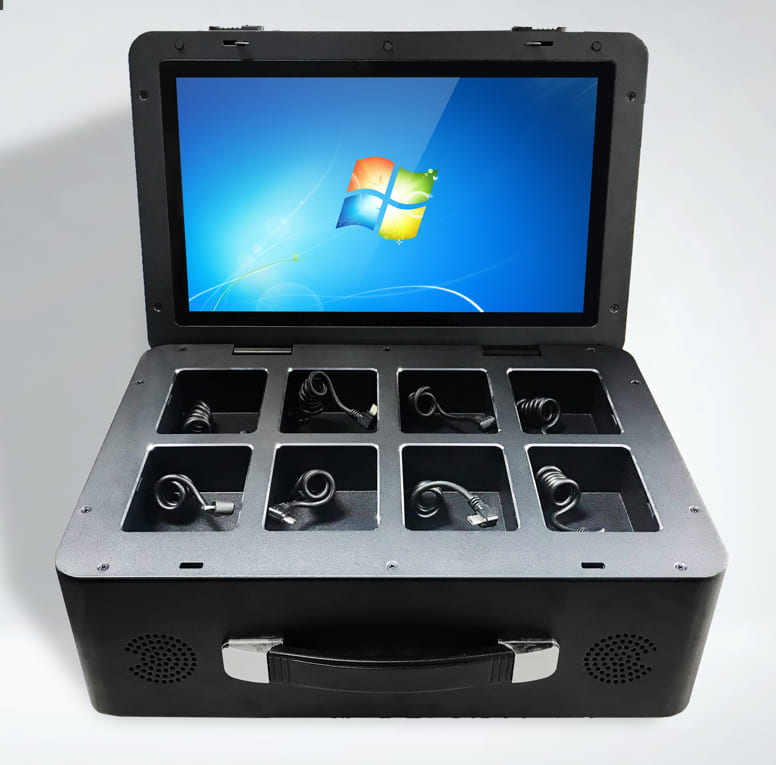

8 slots，Maximum current of a single slot is 5V/1.5A

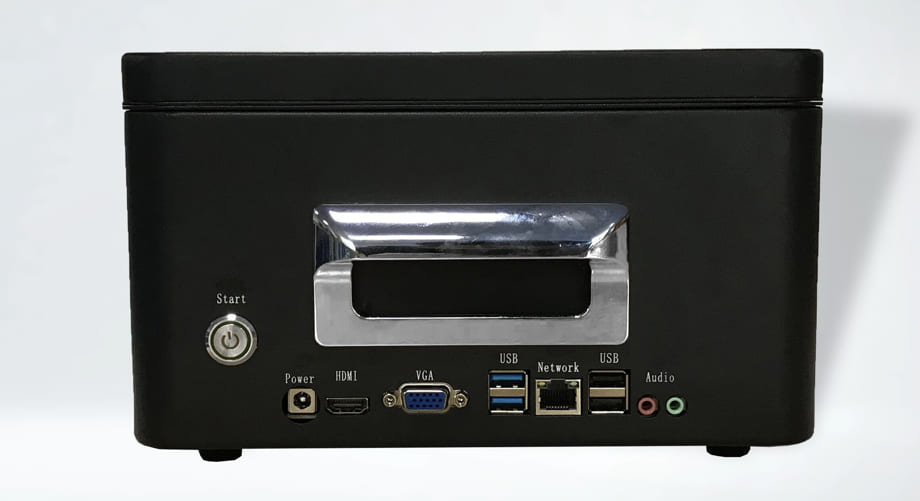

External：Support external 4*usb interface, 1*VGA video output, 1*HDMI high-definition video and audio output

Software parameters

Data collection

8 sets of law enforcement device data are collected and charged at the same time, and the time is automatically adjusted

USB port

4* USB port

Automatic data collection

Docking station will automatically collect all the video & audio, audio, pictures and logs in the law enforcement recorder. 8 sets of 16G law enforcement recorder can be completed the data collection in  30 minutes

Automatic data clearup

After data collection, original data stored enforcement instrument will be automatically cleared up

Transmission resuming at break-points

Support

Automatic data upload

Access data management platform, video and audio files can be automatically uploaded to upper management server, you can set upload

Disk space reminder

When the docking station has a network interruption, If the storage space overflow lamp is abnormal, the device will automatically send out an alarm indication

Automatic charging

After the law enforcement device is connected to docking station, it will automatically start battery charging

Data management

Data can be retrieved according to one or more conditions such as police number, name, equipment number, collection time, shooting time, etc., and single or multiple data can be copied, cut, deleted, and uploaded

Backstage management

Support remote access to view management through IP address

Data assessment

Support personnel data appraisal

Broadcast

Support Voice broadcast

Language

English
